1.描述Description：
（1）可折疊式起重機裝卸設備時可以充分利用自己的優勢和靈活性。

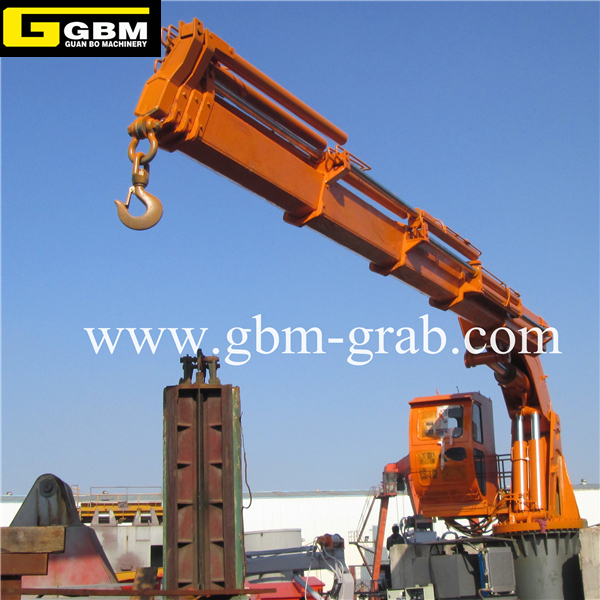

This foldable crane which can make full use of their strengths and flexibility when loading and unloading equipment.
（2）緊湊的結構，起重機可以很容易地容納在每個類型的區域內，尤其是在空間有限情況。
With compact construction, the crane can easily be accommodated on every type of vessel, especially where space is limited.
（3）各種特征和選項，使可折臂起重機有多種功能。
Various features and options make the foldable knuckle boom cranes a multi-functional tool.
2.應用范圍Typical Applications：
服務起重機，供應和貨物裝卸起重機，捕魚和養魚起重機
Service cranes, Provision and cargo handling cranes, Fishing and fish farming cranes.
產品系列Product Range：
|
起重機類型Crane Type |
SWL(ton) |
工作半徑Working Radius(m) |
起重力矩Lifting Moment（kNm） |
提升速度Hoisting Speed(m/min) |
回轉角度Slewing angle（°） |
|
KBT-20 |
0.3~0.5 |
0.6~3.0 |
9~15 |
0~15 |
360 |
|
KBT-45 |
0.5~1.0 |
0.8~4.0 |
20~40 |
0~15 |
360 |
|
KBT-80 |
0.5~1.2 |
1.5~6.0 |
30~72 |
0~15 |
360 |
|
KBT-165 |
0.5~2.0 |
1.5~8.0 |
40~160 |
0~15 |
360 |
|
KBT-400 |
1.0~3.5 |
2.0~10.0 |
100~350 |
0~15 |
360 |
|
KBT-450 |
1.5~3.5 |
2.0~12.0 |
180~420 |
0~15 |
360 |
|
KBT-600 |
1.5~4.0 |
3.0~14.0 |
210~560 |
0~15 |
360 |
|
KBT-800 |
2.0~5.0 |
3.5~15.0 |
300~750 |
0~12 |
360 |
|
KBT-1000 |
2.5~6.0 |
3.5~16.0 |
400~960 |
0~12 |
360 |
|
KBT-1200 |
2.5~6.5 |
4.5~18.0 |
450~1170 |
0~12 |
360 |
|
KBT-1400 |
2.5~7.0 |
4.5~19.0 |
475~1330 |
0~12 |
360 |
|
KBT-1560 |
3.0~7.5 |
5.0~20.0 |
600~1500 |
0~10 |
360 |
|
KBT-1800 |
3.5~8.0 |
5.0~22.0 |
770~1760 |
0~10 |
360 |
說明：可根據用戶需要進行非標設計、制造。該機有各種派生型號供用戶選用。
Note: We can design and manufacture products according to user’s requirements. There are various derivative models of said crane available for customers to choose.
